New2026 Sure-Trac 7×16 Wood Deck Car Trailer

Description

Value Engineering: 2026 Sure-Trac 7×16 7K C-Channel Wood Deck Car Hauler

If you are looking for a highly versatile, budget-friendly tandem-axle car hauler that still delivers true commercial-grade utility, this is the unit. While the entry-level market is frequently flooded with generic trailers built from flimsy angle iron and straight tongues, the Sure-Trac C-Channel series is engineered to a completely different standard.

This is our most accessible car hauler model, but it features the exact same structural integrity, premium powder-coat finish, and high-end running gear found on premium equipment trailers. It is a calm, confident, and robust asset designed to transport cars, UTVs, and smaller equipment without flexing or twisting under load.

Key Capacities & Dimensions

• GVWR: 7,000 lbs

• Curb Weight: 1,940 lbs

• Net Payload Capacity: 5,060 lbs

• Deck Width: 82″ Between Fenders

• Length: 16′ Total Deck

Technical Specifications

Main Frame Sturdy Heavy-Duty Steel Channel Frame

Tongue Setup Fully Wrapped C-Channel Tongue

Decking 2″ x 6″ Pressure-Treated Lumber

Axles Dual 3,500 lb. Cambered Axles with Easy Lube Hubs & Brakes

Ramps 5′ Slide-In Fabricated Ramps

Tail Design 2′ Tread Plate Beavertail

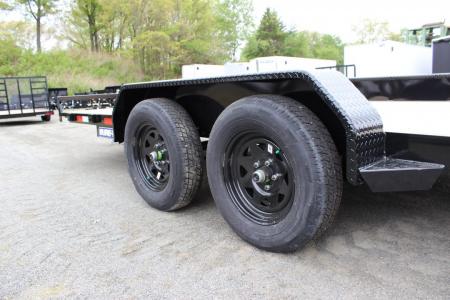

Wheels & Tires 15″ Radial Tires

Tie-Downs (4) Heavy-Duty D-Rings & Stake Pockets Along Perimeter

Jack Setup Secure Setback Jack

Fenders HD Tread Plate Fenders

Board Security Front and Rear Board Retainers

Storage Extras Integrated Spare Tire Mount

Why the Sure-Trac C-Channel Outperforms Generic Builds

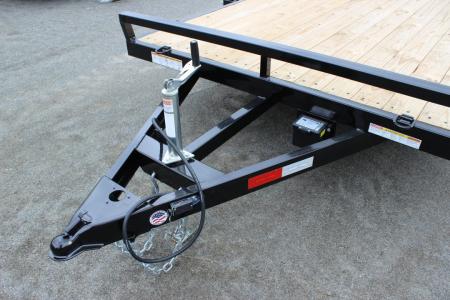

1. Full-Wrap C-Channel Tongue & Frame

   Cheap trailers use a straight tongue welded directly to the front frame rail, creating an immediate stress point. Sure-Trac employs a fully wrapped C-channel tongue that integrates deeply into the sturdy channel frame. This layout significantly enhances the trailer’s structural integrity, providing superior support so you can transport your vehicles with complete confidence.

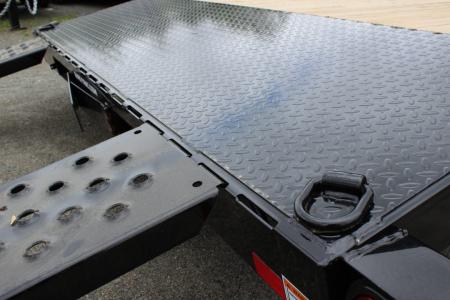

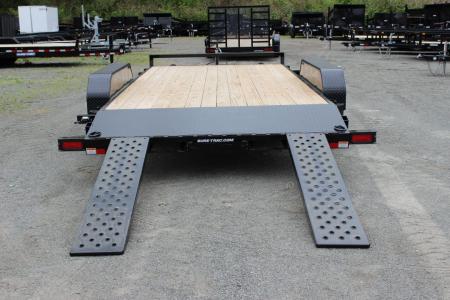

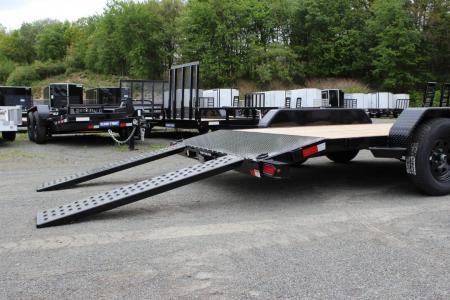

2. Specialized 2′ Beavertail & 5′ Slide-In Ramps

   Loading low-clearance cars or equipment on a completely flat trailer can cause high-centering or bumper damage. This model features a 2′ tread plate beavertail paired with 5′ slide-in fabricated ramps that store neatly out of sight. This combo reduces the loading angle significantly, allowing cars, mowers, and UTVs to step up seamlessly.

3. Commercial Electrical & Wiring Shielding

   Wiring failures are the number one headache on cheap open trailers. Sure-Trac protects your runtime by equipping this unit with the EverLink High-Performance Wiring Harness, completely sealed LED lighting, sealed brake connections, and gel-filled electrical connectors to lock out road moisture and corrosion.

4. Intelligent Wear Protection

   • Front and Rear Board Retainers: Unlike trailers that weld the deck boards permanently into place, the front and rear retainers allow you to easily service or replace the pressure-treated 2×6 decking down the road.

   • Setback Jack: The topwind jack is positioned further back on the tongue structure, ensuring it clears your truck’s tailgate even when lowered.

   Type: Trailer or Truck Bed
   Category: Car Hauler
   Stock: 8952
   Condition: New
   Status: Available
   Manufacturer: Sure-Trac
   Model: ST-CHW-8216-070
   Year: 2026
   Floor Length: 16ft
   Floor Width: 6ft 10in
   Gvwr: 7,000 lbs
   Weight: 1,940 lbs
   Payload Capacity: 5,060 lbs
   Color: Black
   Coupler: 2-5/16″ A-Frame
   Jack: 2K Set-Back
   Pull Type: Bumper
   Axles: 2
   Suspension Type: Leaf Spring Suspension
   Construction: Steel
   Length: 20ft
   Warranty: 3-Year Frame and Component Overall Protection 1-Year Tire Hazard and Abuse Protection 5-Year Standard Tire Warranty 5-Year Axle and Suspension Warranty
   Brakes: YES – BOTH AXLES
   Lights: LED
   Tires: 205/75R/15
   Load Securement: (4) 1/2″ D-Rings, Stake Pockets
   Beavertail: 2FT
   Frame: 4″ Steel Channel
