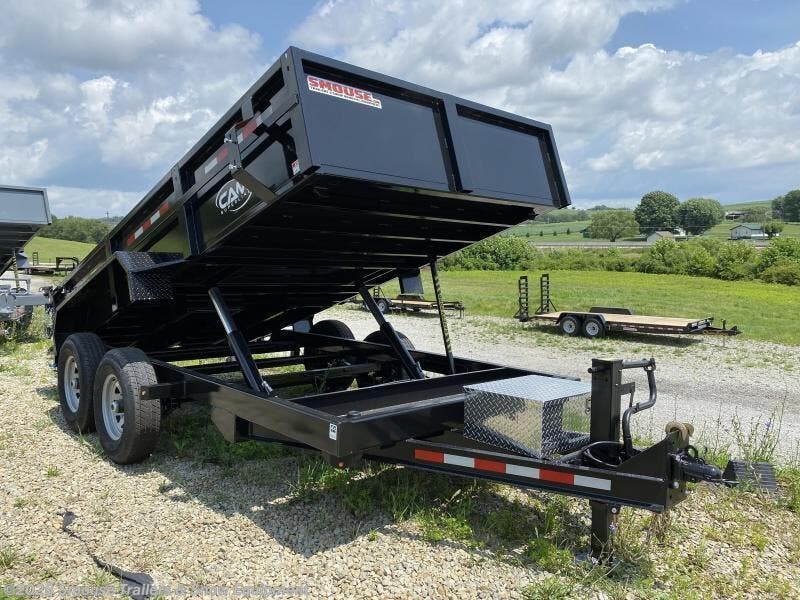

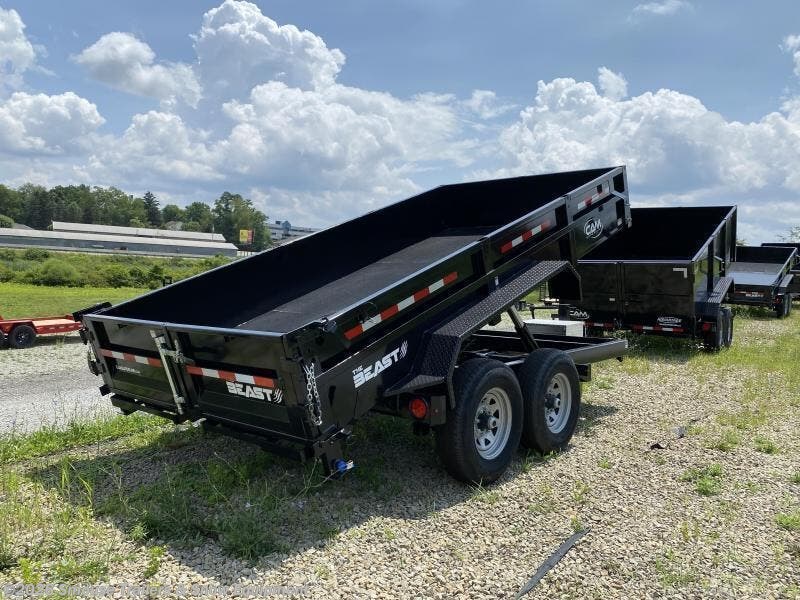

2023 CAM Superline 7CAM614LPHD 6×14 HD Beast Low Profile Dump Trailer

Description

The 2023 CAM Superline 7CAM614LPHD 6×14 HD “Beast” Low Profile Dump Trailer is a new heavy-duty steel dump trailer designed for challenging hauling and dumping applications. It features a 6’9″ x 14′ bed, a 15,400 lb GVWR, 4,080 lb unladen weight, and an 11,320 lb payload capacity.

The CAM Superline “Beast” features a tubular main frame, 6-inch x 3-inch x 3/16-inch frame, 3-inch channel crossmembers, 5-inch channel tongue, and a 10-gauge floor with 12-gauge sides. The trailer is equipped with two 7,000 lb axles, slipper spring suspension, electric brake axles with Nev-R-Adjust brakes, EZ Lube axles, and 235/80R16 LRE tires with 16-inch silver spoke wheels.

For convenient loading and unloading, this dump trailer includes 6-foot slide-out ladder ramps for tractors and skid steers, along with 1/2-inch D-ring tie-downs, full-height stake pockets, a tie-down rail, rear stabilizer legs, and a storage tray.

The dumping system features a triple-acting tailgate with chains, two telescopic hydraulic cylinders, a 12V single-acting hydraulic pump, 12V deep-cycle battery, 110V battery charger, remote control with a 20-foot cord, and a 45-degree dump angle. The trailer also includes an aluminum lockable pump box.

Additional features include diamond plate fenders, an adjustable 2-5/16-inch ball coupler or pintle ring, 12K bolt-on drop-leg jack, 7-way SAE plug, breakaway switch, LED rubber-mounted lights, sealed wiring harness, spare tire mount, and PPG polyurethane paint finish.

Product Details:

• Year: 2023
• Manufacturer: CAM Superline
• Model: 7CAM614LPHD
• Type: Dump Trailer
• Condition: New
• Length: 14 ft
• Width: 6 ft 9 in
• Construction: Steel
• Exterior Color: Black
• Axles: 2
• Hitch: Pintle Hook
• GVWR: 15,400 lbs
• Trailer Weight: 4,080 lbs
• Payload Capacity: 11,320 lbs
• Bed Width Inside: 81.5 in
• Bed Length Inside: 168 in
• Side Wall Height: 20.5 in
• Deck Height: 29 in
• Dump Angle: 45°
• Volume Capacity: 6.02 cu yd
• Floor: 10-Gauge
• Sides: 12-Gauge
• Axles: 7,000 lbs each
• Tires: 235/80R16 LRE
• Wheels: 16-in Silver Spoke
• Tailgate: Triple-Acting with Chains
•
