New2026 ITI Cargo 8.5×16 Enclosed Cargo Trailer w/ Upgrades

2026 ITI Cargo 8.5×16 XE Flat Top V-Nose Enclosed Trailer (7K GVWR)

Factory White Blackout Edition with Aluminum Wheels, Included Steel Spare, 84″ Ceiling, & (4) Floor D-Rings

The 2026 ITI Cargo 8.5×16 XE combines the full deck width of a commercial car hauler with an eye-catching, custom appearance package. Built on a heavy-duty 6″ x 2″ steel tube main frame and matching 6″ x 2″ triple-tube tongue, this 7,000 lb. GVWR enclosed platform is custom-spec’d in a White Blackout Edition, contrasting bright white .080″ composite skin against solid black trim extrusions, a black nose cap, a black rear hoop, and a black aluminum tread plate (ATP) stone guard.

This lot-ready unit comes factory-upgraded with aluminum wheels, an included steel spare tire, four heavy-duty floor-mounted D-rings, and an upgraded 84-inch (7’0″) interior ceiling height. With an 80-inch rear ramp door opening and a commercial 4,000 lb. ramp door load rating, this setup is ready for immediate work or recreation.

Key Capacities & Dimensions

• GVWR: 7,000 lbs (Tandem Axle Class)

• Axles: (2) 3,500 lb. Drop Spring Brake Axles with Easy Lube Hubs

• External Dimensions: 8.5′ Wide (102″) x 16′ Box Length (248″ Overall Length / 203″ Deck Length)

• Internal Dimensions: 97″ Interior Deck Width / 189″ Box Interior Length / 81.5″ Clear Between Fenders

• Ceiling & Entry Height: 84″ Standard Interior Height / 80″ Rear Ramp Opening Height

• Rear Loading Clearance: 93.5″ Rear Opening Width / 21″ Low Deck Height

• Ramp Capacity: 400 Series Spring-Assist Ramp Door (4,000 lb. Load Rating)

Technical Specifications

Feature Specification

Main Frame 6″ x 2″ Heavy Steel Tube Chassis

Tongue 6″ x 2″ Steel Triple-Tube Wrapped Tongue

Crossmembers Formed Steel Crossmembers on 16″ On-Center Spacing

Wall Posts 2″ x 1″ Steel Tube Wall Posts on 16″ On-Center Spacing

Roof Bows Steel Tube Roof Bows on 24″ On-Center Spacing

Exterior Skin Premium White .080″ Composite Panels

Exterior Trim Factory Blackout Package (Black Trim, Black Nose Cap, Black Rear Hoop)

Fastening System 100% Screwless Bonded Exterior Sidewalls

Stone Guard 24″ Black Aluminum Tread Plate (ATP)

Wheels & Tires Upgraded Aluminum Wheels with ST205/75R15C 6-PLY Radial Tires

Spare Tire Included Matching Spare Tire Mounted on Steel Wheel

Decking & Walls 3/4″ Engineered Wood Decking with Engineered Wood Inner Walls

Tie-Downs (4) Pre-Installed Heavy-Duty Floor-Mounted D-Rings

Braking System 4-Wheel Electric Brakes with Breakaway Battery Safety Kit

Coupler & Jack 2-5/16″ A-Frame Coupler / 2K Coupler-Mounted Jack

Side Access Door 36″ Wide Flush Lock Door with Black Trim & Plastic Holdback

Frame Protection BATTLECOAT Polyurea Tongue Coating & Asphalt Emulsion Undercoating

Lighting & Electrical Full DOT LED Exterior Lights / (2) Interior LED Dome Lights with Wall Switch

Upgraded Custom Highlights

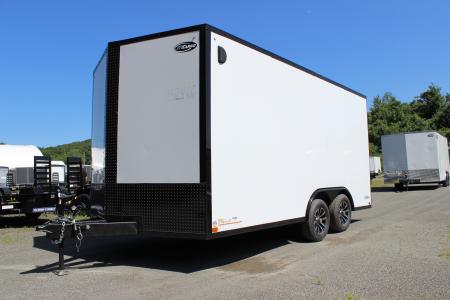

1. Premium White Blackout Aesthetic

   This build ditches traditional bright aluminum trim for a high-contrast style. The factory Blackout Package wraps the side extrusions, front V-nose cap, rear ramp frame, and 24-inch stone guard in a clean black coat. Set against the smooth, screwless White composite panels, it offers an ultra-clean, professional profile behind your truck.

2. Upgraded Aluminum Wheels + Included Steel Spare Tire

   This unit replaces standard painted wheels with aluminum wheels for superior long-term corrosion resistance and an upgraded look. To ensure your crew is never stranded on the highway, we also included a full-size spare tire mounted on a steel wheel.

3. Pre-Installed (4) Heavy-Duty Floor D-Rings

   Securing machinery, side-by-sides, or vehicles is straightforward right off the yard. The 3/4″ engineered wood deck features four heavy-duty floor-mounted D-rings factory-anchored through heavy steel backing plates into the frame structure below.

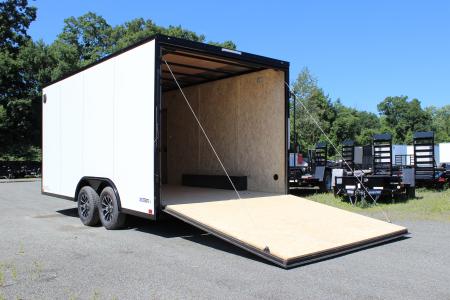

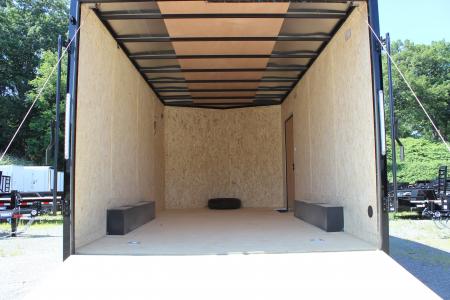

4. Extra-Tall 7-Foot (84″) Ceiling & 80″ Rear Door Clearance

   The upgraded 84-inch interior ceiling height provides complete stand-up headroom across the entire floor. Crucially, it expands the rear ramp door opening to an 80-inch vertical clearance and 93.5-inch width, making it effortless to drive in tall off-road UTVs, commercial equipment, or high cargo racks.

5. Heavy 6″ x 2″ Tube Frame & 16″ On-Center Structure

   Built on a rigid 6″ x 2″ steel tube main frame and matching 6″ x 2″ triple-tube tongue, this trailer is engineered for long-term rigidity. Supported by 16-inch on-center floor crossmembers and wall posts, the platform stops floor deflection under heavy wheel loads and eliminates wall flex at highway speeds.

Pricing & Yard Terms

• Price: Cash/Check Price Listed

• Processing Fees: A 3% processing fee applies to credit card transactions.

• Financing: Competitive commercial financing options are available through multiple lenders.

• Dealer Fees: $0. We charge absolutely zero documentation, prep, or administrative fees.

• Documentation: Temporary license plate/transit registration included with purchase for immediate road use.

• Sales Tax: NJ residents pay 6.625% sales tax at purchase. Out-of-state buyers are exempt from NJ sales tax and pay their local rate at registration in their home state.

• Availability: 8.5-wide White Blackout enclosed units with aluminum wheels turn over quickly. Please call the shop directly to confirm current lot stock!
