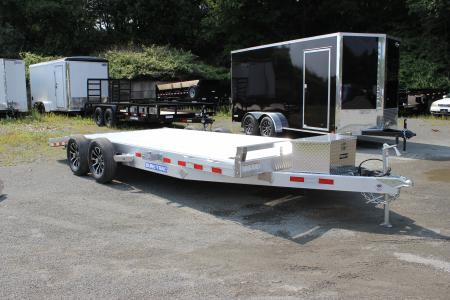

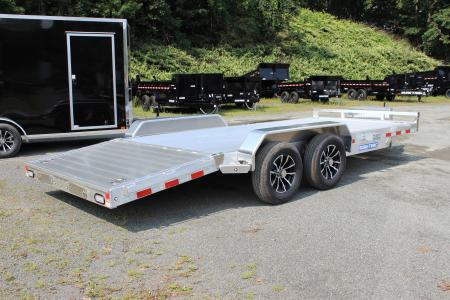

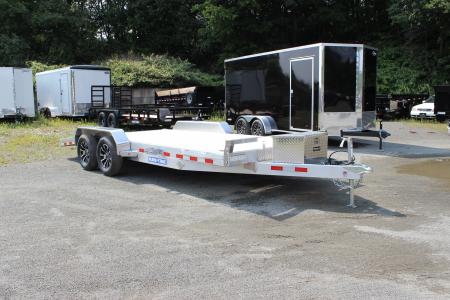

New2026 Sure-Trac 7×18 ALL Aluminum Car Hauler

Description

2026 Sure-Trac 7×18 Full Aluminum Car Hauler (7K GVWR / 14′ + 4′ Beavertail)

Upgraded Independent Torsion Axles, Lockable A-Frame Toolbox, Full Extruded Deck, & Dual Removable Fenders

Combine featherweight open hauling with sleek show-car aesthetics in the 2026 Sure-Trac 7×18 Full Aluminum Car Hauler. Engineered on a 6″ wrapped aluminum channel frame with an ultra-light ~1,255 lb. curb weight, this platform provides a massive 5,745 lb. net payload capacity while eliminating rust and paint maintenance entirely.

Custom-upgraded with independent Torflex torsion axles for a smoother, lower ride and an installed lockable A-frame aluminum toolbox, this unit features a full extruded aluminum plank deck, a 4-foot extruded beavertail with 5-foot slide-in ramps, and dual removable fenders for effortless vehicle loading and door clearance.

Key Capacities & Dimensions

• GVWR: 7,000 lbs (Tandem Axle Class)

• Curb Weight: Approx. 1,255 lbs

• Net Payload Capacity: Approx. 5,745 lbs

• Deck Dimensions: 82″ Clear Deck Width (Between Fenders) x 18′ Total Deck Length (14′ Flat Deck + 4′ Extruded Aluminum Beavertail)

• Overall Footprint: 262″ Overall Length / 24″ Deck Height / 17″ Coupler Height

• Axle Suspension: Upgraded Dual 3,500 lb. Independent Rubber Torsion Braking Axles

• Storage: Upgraded Lockable Drop-In A-Frame Aluminum Storage Box

• Loading Ramps: 5′ Rear Steel Fabricated Slide-In Ramps

Technical Specifications

Feature Specification

Main Frame & Tongue 6″ Structural Aluminum Channel w/ Fully Wrapped 6″ Channel Tongue

Crossmembers 3″ Structural Aluminum Channel

Decking Premium Full Extruded Aluminum Plank Decking

Suspension Upgraded Independent Torflex Torsion Axles w/ Easy Lube Hubs

Fenders Dual Removable Smooth Aluminum Fenders (Both Driver & Passenger Sides)

Toolbox Lockable Aluminum A-Frame Tongue-Mounted Storage Box

Wheels & Tires ST205/75R15C 6-PLY Radial Tires on 15″ 5-Lug Aluminum Wheels

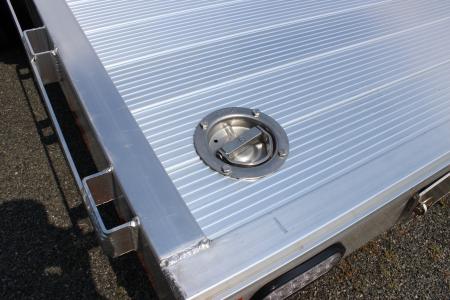

Tie-Down System (4) Recessed Floor D-Rings, Full-Length Stake Pockets, & Outer Rub Rail

Bulkhead Heavy-Duty Tubular Aluminum Front Bulkhead

Coupler / Jack 2-5/16″ A-Frame Ball Coupler / Setback 2,000 lb. Zinc-Plated Jack

Electrical / Lights 7-Way RV-Style Round Plug / Full DOT-Compliant LED Lighting Package

Core Performance & Design Highlights

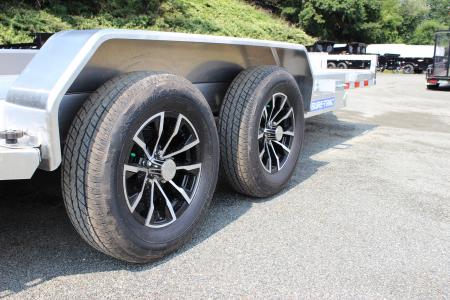

1. Upgraded Torflex Torsion Axles & Massive 5,745 LB Payload

   Replacing standard leaf spring suspension, the upgraded independent rubber torsion axles allow each wheel to absorb road shocks independently. This lowers the deck ride height, eliminates highway axle bounce when empty, and delivers buttery-smooth tracking behind your tow vehicle. Because the all-aluminum chassis weighs only 1,255 lbs, you gain nearly three full tons of usable vehicle payload.

2. Dual Removable Fenders & Gentle Loading Angle

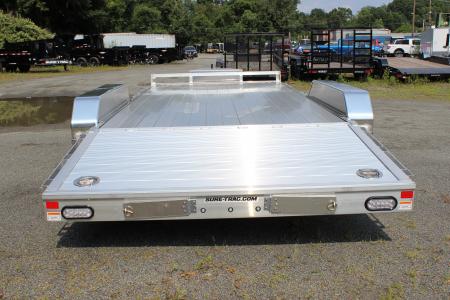

   Both heavy-duty smooth aluminum fenders feature quick-release latch systems. You can remove either fender in seconds, allowing sports car doors to open completely over the tires without scraping. The 4-foot extruded aluminum beavertail drops the rear deck height to pair seamlessly with the 5-foot slide-in ramps, creating a shallow approach angle for low-clearance vehicles and race cars.

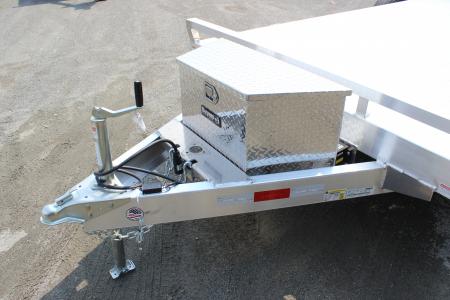

3. Full Extruded Aluminum Deck & Installed A-Frame Toolbox

   The interlocking extruded aluminum deck delivers superior structural stiffness, slip resistance, and a showroom finish. Up front, a factory-installed lockable A-frame aluminum toolbox keeps your tie-down straps, ratchets, wheel chocks, winches, and hitch accessories safe, organized, and shielded from the weather.

4. Heavy 6″ Wrapped Frame & Structural Protection

   Built on heavy 6″ aluminum channel main rails, the 6″ aluminum channel tongue is fully wrapped back to the front axle to prevent frame twisting under heavy loads. Up front, a heavy-duty tubular aluminum bulkhead shields trailered vehicles from kicked-up highway gravel and road debris.

   Type: Trailer or Truck Bed
   Category: Car Hauler
   Stock: 9105
   Condition: New
   Status: Available
   Manufacturer: Sure-Trac
   Model: ST-CHAA8218-070
   Year: 2026
   Floor Length: 18ft
   Floor Width: 6ft 10in
   Gvwr: 7,000 lbs
   Weight: 1,255 lbs
   Payload Capacity: 5,745 lbs
   Axle Capacity: 3,500 lbs
   Color: Aluminum
   Wheels: Aluminum
   Coupler: 2-5/16th Ball
   Jack: Zinc Coated Set Back
   Pull Type: Bumper
   Axles: 2
   Suspension Type: Leaf Spring Suspension
   Construction: Aluminum
   Warranty: 3-Year Frame and Component Overall Protection 1-Year Tire Hazard and Abuse Protection 5-Year Standard Tire Warranty 5-Year Axle and Suspension Warranty
   Length: 21ft 10in
   Brakes: YES- Electric, both axles
   Lights: LED
   Tires: ST205/75R15C 6-PLY
   Load Securement: (4) Recessed D-Rings, Stake Pockets
   Frame: 6″ Aluminum Channel
